| ब्रांड नाम: | Donjoy |
| मॉडल संख्या: | NO. MINI-VGM0S2, |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | बातचीत योग्य |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

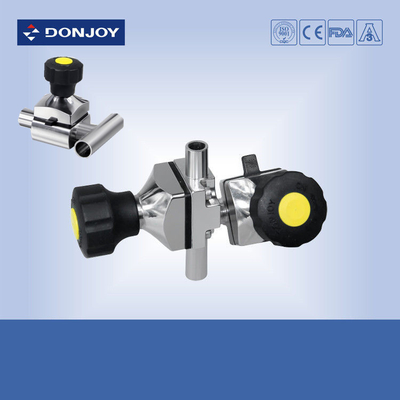

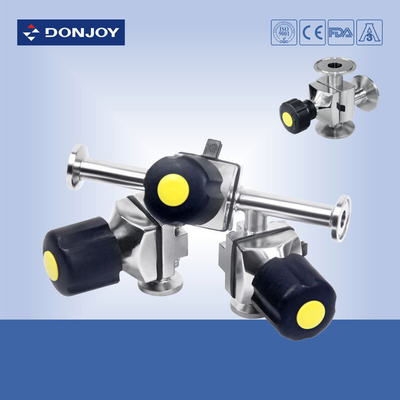

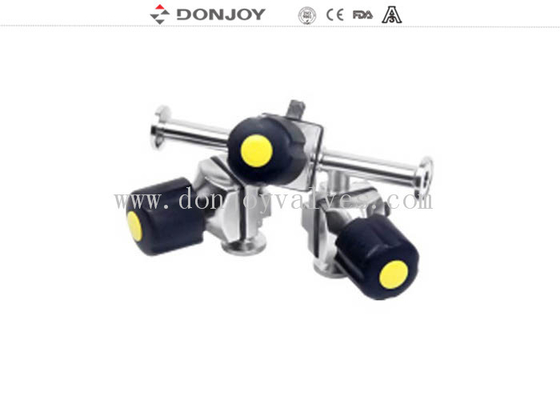

Stainless steel 316L Multiport Phamacy Sanitary Diaphragm Valves with hand wheel of BPE standard
Various configuration of Diaphragm valve
1. Didaphragm valve with Pisitioner / Process Controller (IL-TOP)
2. Diaphragm valve with Control Unit (C-Top)
3. Valve position Regulator
4. Position Sensor Module
5. Plastic Handle
6. Stainless steel handle
7. Stianless steel acutor
8. Electric Diaphragm valve
9. Plastic Acutor
10. Body: Casting / Forging
Specifications
|
Product Name: |
Multiport phamacy hygienic Diaphragm Valves |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces |
|
Max Working Pressure: |
8 Bar |
|
Max.Working Temperature: |
150 degree C |
|
Available size: |
1/4”-3/4”, DN6-DN15 |
|
Available connection: |
Clamp/weld/thread/special connection |
|
Available standard: |
3A/BPE/DIN/ISO/IDF |
|
Operated: |
Manual,Pneumatic |
|
Available structure: |
Straight, tee, U-type, tank bottom |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
|
Suitable scope: |
For processing dairy,food, beverage, pharmacy etc |
|
Valve body craft: |
Casting or Forging |
|
Position Sensor: |
Optional |
|
Packaging Details: |
Bubble pack for each valve. Outside packing are carton or |
|
Delivery details: |
Usually within 20 days after receiving T/T down payment. |
Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
Product drawing
Product actuator
Product body
