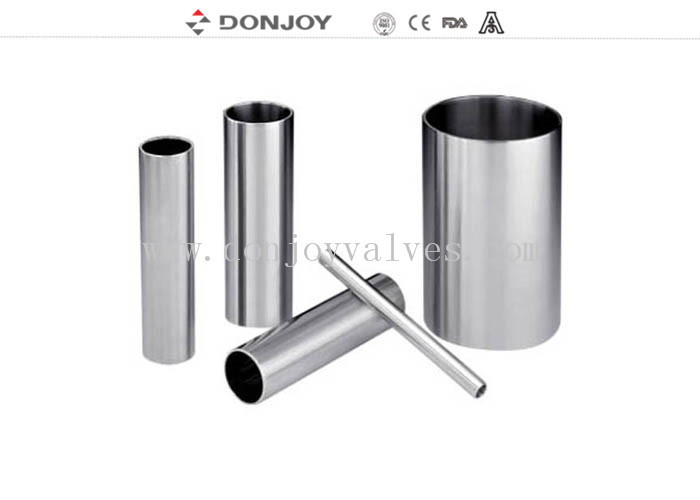

ASME BPE STAINLESS STEEL SEAMLESS TUBING
Quick Detail
Sanitary tube, 6Meter/Length, 3Meter/Length, 5.8M/Length, DN11850 tubing
Polished :Satin, hairline, 2B,BA, mirror
Shape :Round, Square, Rectangular
Tchnique: Cold Rolled
Standard: AISI,ASTM,DIN,JIS,GB,EN
SURFACE: 180Grit, 320Grit, 400Grit, 500Grit, Satin, hairline, 2B,BA, mirror,Unpolished.
Specification
|
Product Name: |
Sanitary Polish ASTM 304/316L welded seamless Stainless Steel tube for food |
|
Material: |
AISI304/1.4301, AISI316L/1.4404 |
|
Size: |
1/2"-8", DN10-DN200 |
|
Finish: |
mirror polish, stain finishing, RA≤0.8um,180grit,240Grit,320Grit,Annealed, pickled |
|
Connection: |
weld ends |
|
Standard: |
BPE,3A,SMS,DIN,ISO,ISO1127 |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic, etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Application
Appplied to the industry of milk, wine, beverage, cheese, food, sauce, edible oil, brewage, meat processing, preservet fruit, cosmetic, biology, chemical industry, pharmacy and so on.
Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
Product drawing
| Size OD | Wall Thickness | Outside Diameter Tolerance | Length Tolerance | Wall Thickness Tolerance | ||||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (%) |
| ½ | 12.7 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| ¾ | 19.1 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 1 | 25.4 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 1½ | 38.1 | 0.065 | 1.65 | +/-0.008 | +/-0.20 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 2 | 50.8 | 0.065 | 1.65 | +/-0.008 | +/-0.20 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 2½ | 63.5 | 0.065 | 1.65 | +/-0.010 | +/-0.25 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 3 | 76.2 | 0.065 | 1.65 | +/-0.010 | +/-0.25 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 4 | 101.6 | 0.083 | 2.11 | +/-0.015 | +/-0.38 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 6 | 152.4 | 0.109 | 2.77 | +/-0.030 | +/-0.76 | +1, -0 | +25.4, -0 | +/-10.0% |
DONJOY BPE Stainless Steel Tubing and fittings compliant with ASME BPE standard, constructed from sanitary stainless steel 316L, provide solid, durability, problem-free for weld or assemble, available in ASME BPE, 3-A, DIN, SMS, ISO, I-line standard. ASME BPE tubing and fittings special used in pharmaceutical and biotech industries.
