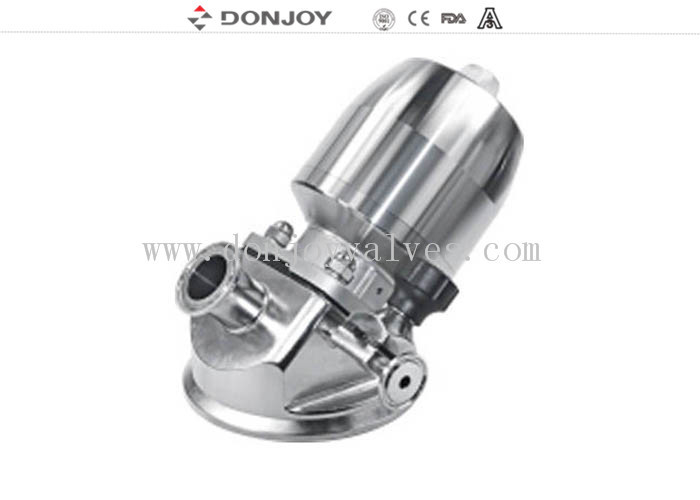

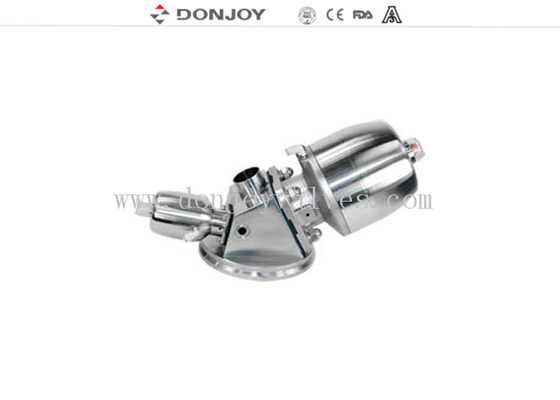

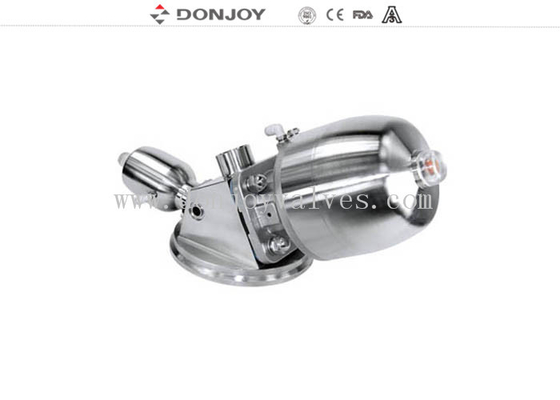

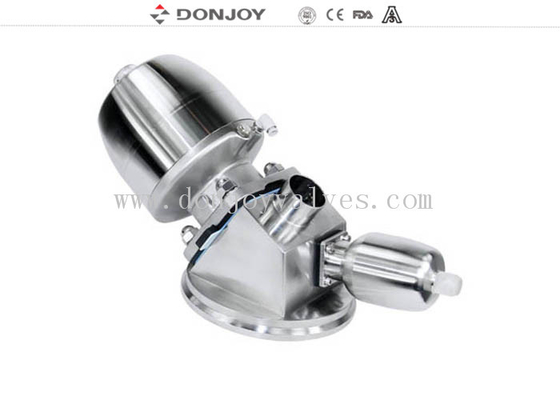

316L Pneumatic or Manual Tank Bottom Sanitary Diaphragm Valve 1'' - 4''
Description:
Diaphragm valves, manually or pneumatically operated, are specifically designed for use on hygiene andaseptic processes in the pharmaceutical industries.
The valve is excellent for flow control as well as open/close control
The diaphragm valves are better in feature of flow in comparison with other valves.
It is eaiser to clean up and better to process the substance with particles.
The phenomenon of air pocket is rare during application of flow control.
Specifications
|
Product Name: |
Pneumatic Tank Bottom Valve with Stainless Steel Actuator |
|
|
Single diaphragm:sillcone/EPDM/FPM gasket One piece adhesive diaphragm: PTFE+EPDM Two pieces: PTFE+EPDM Mini-type: single (EPDM/ SILICONE/ FPM) Double(PTFE+EPDM) |
|
Max.Working Temperature: |
-30degree c to 130 degree c (depending on diaphragm) |
|
Max.Working Pressure: |
6 bar to 8 bar(depending on diaphragm) |
|
Valve body |
Casting body or forging body 1.4404/316L |
|
Available size: |
DN25-DN100, 1 inch- 4 inch |
|
Available connection: |
Clamp / welding / special connection |
|
Available standard: |
3A /BPE / DIN / ISO / IDF |
|
Operation: |
Manual, Pneumatic |
|
Available structure: |
tank bottom valve, tank bottom valve with sampling valve |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
|
Three ports with two control valves Three ports with one control valves |
|
Body type |
MG-32A,MG-31A,M-32B |
Various configuration of Diaphragm valve

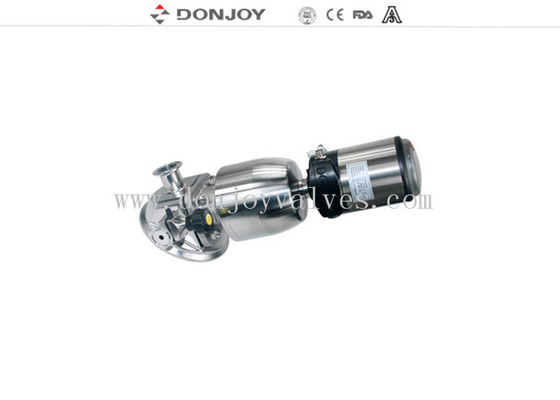

Pneumatic Operation
3. IL-TOP positioner
4. C-TOP controller
5. Positioner sensor
Size:1"-4",DN20-DN100
Power supply:DC 24V
Signal input:0/4-20mA, 0-5/10V(standard)
Output feedback:4-20mA, 0-10V(option)
Bus: DEVICE NET BUS
Actuator:plastic and stainless steel
grade: IP67
Product drawing
