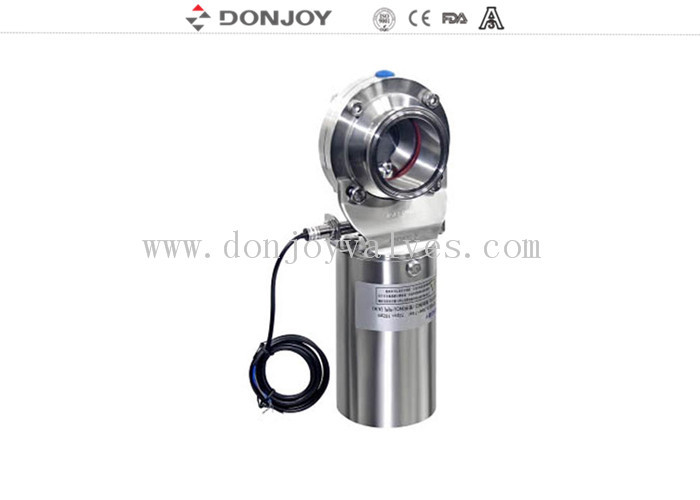

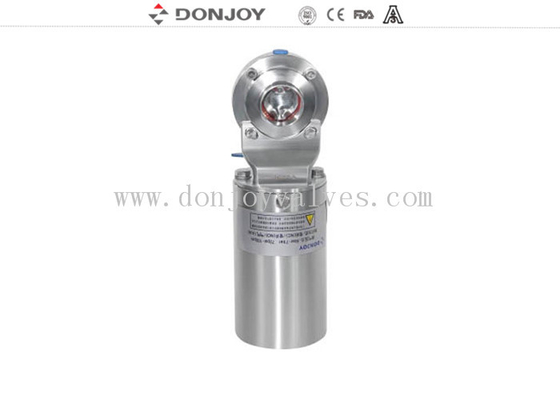

SS316L Stainless steel pneumatic clamped butterfly valve with position sensor
Specifications
|
Product Name: |
Pneumatic butterfly valve with position sensor |
|
Valve Body Material: |
SS304/316L |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
MaxWorking Pressure: |
10Bar |
|
Max.Working Temperature: |
120 degree C |
|
Available size: |
1''-6'', DN25-DN150 |
|
Available connection: |
Clamp/welding/thread/special connection |
|
Available standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
Manual, Pneumatic, Electric |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Actuator: |
Stainless steel pneumatic actuator |
|
Design: |
With patent protection |
Pneumatic actuator optional
1.Vertical stainless steel pneumatic actuator(Single acting, double acting)
2.Horizontal aluminum pneumatic actuator(Single acting, double acting)
Connection
Clamped, welded and threaded etc.
Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.
Delivery detail
Usually within 20 days after receiving T/T down payment
Product drawing
