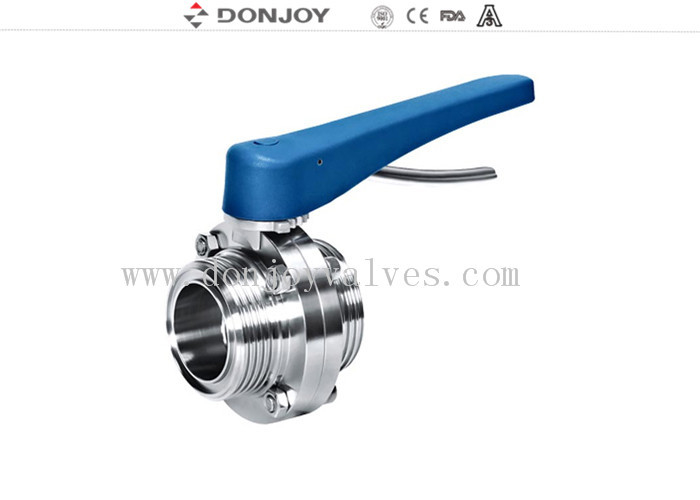

Food grade stainless steel threaded sanitary butterfly valve of sanitary level with handle for fluid regulation
Tag:
Tri-Clamp Butterfly Valve, Flange Type Butterfly valve, Weld butterfly valve,RJT Male Butterfly valve
Specifications
|
Product Name: |
Food grade stainless steel threaded sanitary butterfly valve |
|
Valve Body Material: |
SS304/316L |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
MaxWorking Pressure: |
5Bar |
|
Max.Working Temperature: |
120 degree C |
|
Available size: |
DN10-DN300, 1/2"-12" |
|
Available connection: |
Clamp/welding/thread/special connection |
|
Available standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
Manual,Pneumatic, Electric |
|
Handle application: |
Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position |
|
Control: |
Smart valve positioner / C-TOP control/position sensor, Il TOP |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Model of plastic multi - position handle: |
NO. VSB04 / NO.VSB06 / NO.VSB08 |
|
Installation of handle: |
On one side of valve |
Connection
Clamped, welded and threaded, ANSI Flange,
Application :
Dairy produce,brewery,food,pharmacy,beverage,cosmetics,chemical industry,etc
Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
Various handles
Two-position handle; (Pull Handle )
three-position handle;(Pull Handle )
four-position pull handle; (Pull Handle )
multi-position plastic handle;
multi-position stainless steel handle, this handle can be lockable.
