| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO. |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | बातचीत योग्य |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

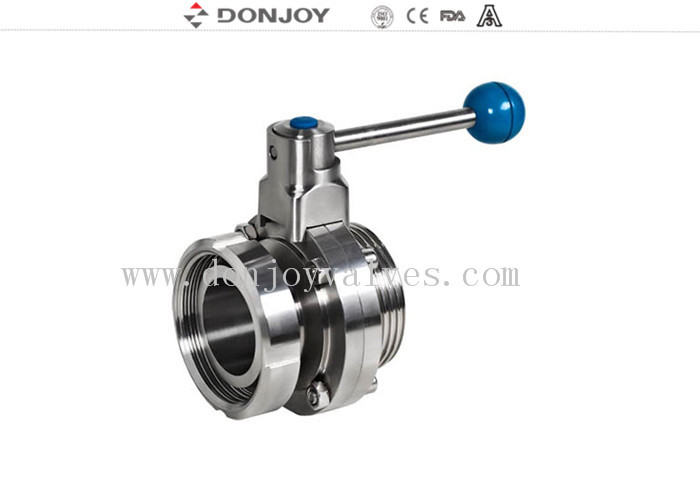

DN10-DN300 sanitary stainless steel butterfly valves with nut and thread connection ends
Butterfly valve whatever manual or automatic operation can be used in food processing, pharmaceutical and chemical products, industrial fluid applications.
Specifications
|
Product Name: |
DN10-DN300 sanitary stainless steel butterfly valves with nut and thread connection ends |
|
Valve Body Material: |
SS304/316L |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
MaxWorking Pressure: |
10Bar |
|
Max.Working Temperature: |
130 degree C |
|
Available size: |
DN10-DN300, 1/2"-12" |
|
Available connection: |
Clamp/welding/thread/special connection |
|
Available standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
Manual,Pneumatic, Electric |
|
Handle application: |
Two-position handle, three-position handle, four-position |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Surface finishing: |
Ra≤0.8μm |
|
Artwork: |
Forging |
Material
The material connected with others: AISI 316L / 1.4404
The material in other parts: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining
Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting and single acting
Inductive position sensor
C - TOP control head
Positioner IL-TOP
Position sensor
Connection: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.
Handle selection
Two-position handle;
three-position handle;
four-position pull handle;
multi-position plastic handle;
multi-position stainless steel handle;
Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
Display
