| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO.EGL210 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | बातचीत योग्य |
| पैकेजिंग विवरण: | Carton, Wooden Case |
| भुगतान की शर्तें: | T/T,L/C, Credit Card |

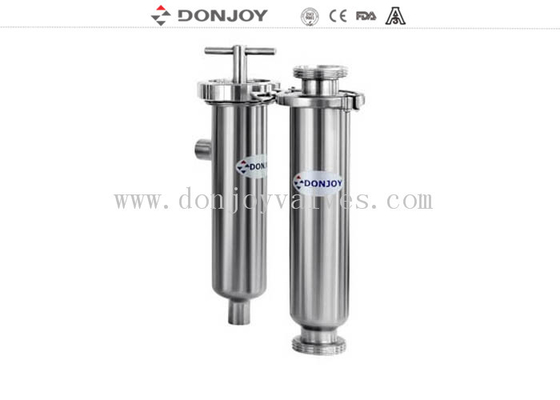

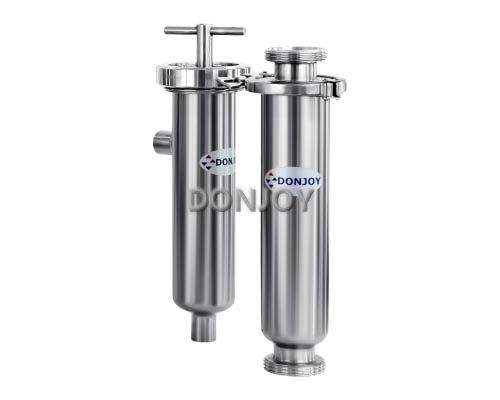

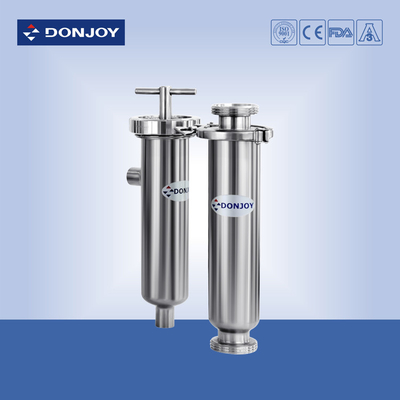

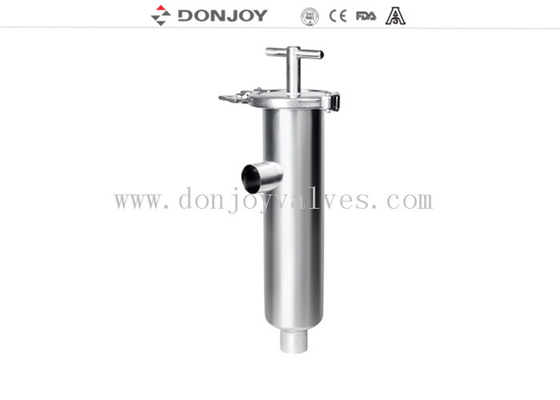

Angle Type Strainer SS04 Pipeline Filter With 30-300 Meshes Screen
Quick Detail
Sanitary filter/Strainer
Materials: SUS304/SUS316L, 1.4301/1.4404, AISI304/AISI316L
Size:1"-4"
Working tempressure: -10℃ to 120 ℃(EPDM), +140℃ (SIP,30 Minites)
14℉ to 248℉
Max pressure: 10Bar,145PIS
Gasket: Silicone, FPM, NBR(FDA 177.2600),EPDM
Screen Hole:0.5mm-2mm
Surface: Inside RA≤0.8um,Outside: Mirror Polished
Connection: Clamped, Welded, Thread
Standard: DIN,3A, RJT,SMS,ISO,IDF
Operating Principles:
Specification
| Product Name: | Angle type strainer, Angle FIlter SS316L,1 inch to 4 inch use to the pipeline Inlet |
| Material: | AISI304, AISI316L |
| Size: | 1-4" |
| Finish: | Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit |
| Connection: | Welded, Threaded, Clamped |
| Standard: | DIN,3A,SMS,ISO |
| Certificate: | CE, ISO9001/2008, 3A |
| Application scope: | Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
| Packaging Details: | Shrink wrapped - carton - pallet . Or as per the request of customers |
The filter is a equipment to remove a small amount of solid particles in the liquid, protect compressor,pump,instrument and other equipment can work normally. When need to be clean,as long as you Take out the dismountable filter cartridge, to reload after processing,so it's more convenient to ues or maintain.
Advantages: hygiene level filter sleeve unique structure, make each sleeve no dead Angle, both internal and external surface can be completely unpick and wash, easy to operate.
Packing: Cartons, Wooden case or customer requirment
Payments Term:
Total amount <=1000USD, 100% in advance. Total amount>=1000USD, 50% T/T in advance ,balance before shippment.
Delivery time: For the samples within 7 days. For the large order always with 15 days.
Term of conditions: EXW PRICE, FOB, CIF....
MOQ: 1PCS
Metal Mesh
| Mesh | B(MM) | Useful Surface(%) |
| 30 | 0.55 | 48 |
| 40 | 0.4 | 46 |
| 60 | 0.3 | 52.6 |
| 80 | 0.2 | 42 |
| 100 | 0.15 | 36.2 |
| 165 | 0.1 | 45.4 |
Perforate Plate
| A(MM) | Useful Surface(%) |
| 0.5 | 15 |
| 1 | 28 |
| 1.5 | 33 |
| 2 | 30 |
| 3 | 33 |
| 5 | 46 |
If you still have any problems,Please do not hesitate to contact us.
