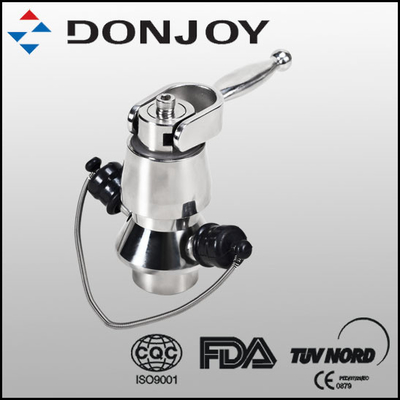

Automaitc return handle Aspetic Sampling Valve with welded Connection,SS316L,
Quick Detail
Sampling Valve
Size:12.7mm,1/2"
Type: Pnuematic
Gasket: EPDM,PTFE
Working Pressure:6Bar
Polished: Mirror, Mattr, Ra≤0.8μm,Ra≤0.5μm
Specification
|
Product Name: |
Pneumtic Aspetic Sampling Valve with Clamp Connection,SS316L, |
|
Material: |
AISI304, AISI316L |
|
Size: |
1/2" |
|
Finish: |
Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded,Clamped |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Installation
The aseptic sampling valve is designed for sterilization before and after each sampling.
Open :Sampling-the manual valve is opened by rotating the handle (adjustable value) or by activating the lever (on/off valve), the stem and the membrance are then retracted, allow liquid to pass.
Closed: Sterilizing-the built-in spring closes the valve and keeps the channel open between the hoses though reverse process in order to sterilize.If using by steam, a small pressure relief valve (optional) on the outlet is recommended.

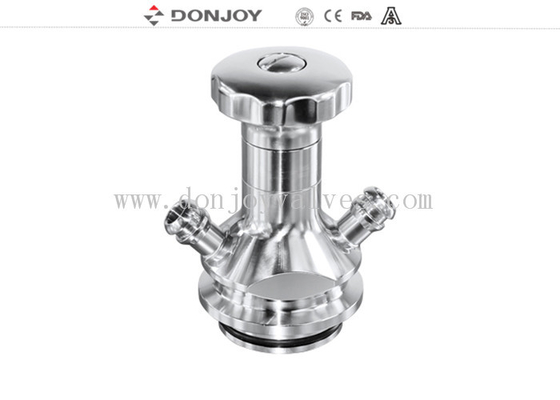

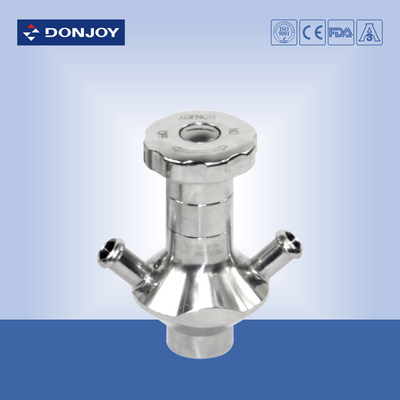

Standard design: the aseptic sampling valve consists of three parts, a valve body, a handle and a membarnce, the rubber.
Handle:(1) Turning handle (2) removable key
Application:
The aseptic sampling valva is applied to beer,milk, beverage, fruit juice, pharmacy industries .
