| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO.VQD100Q2 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | $100-$500/pc |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

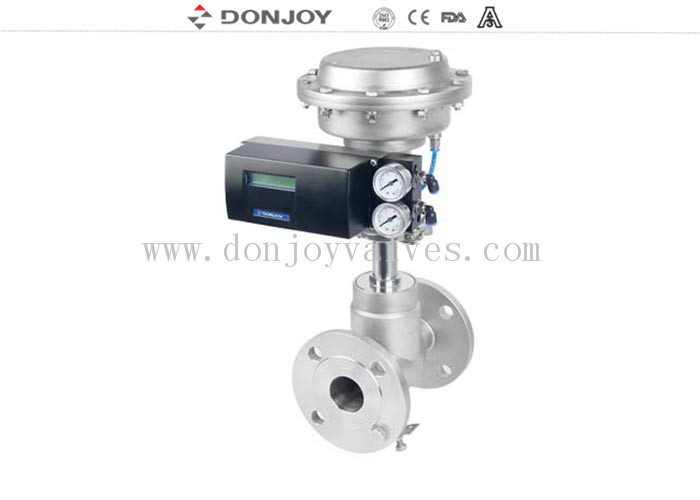

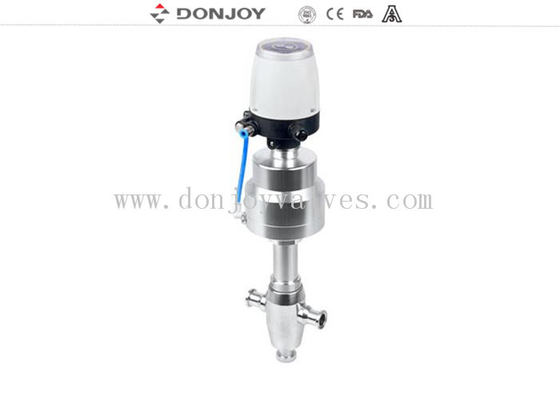

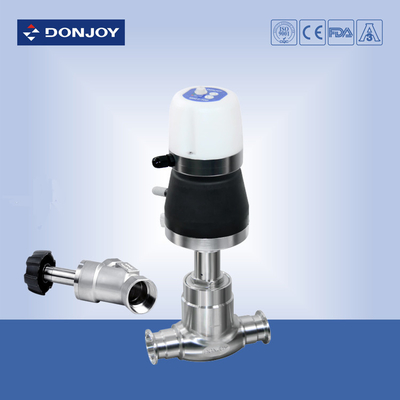

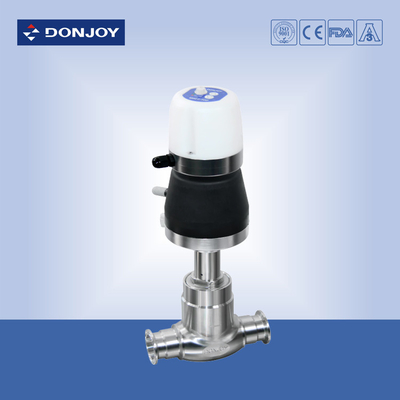

SS Actuator Regulation Pneumatic Globe valves with flange end / Steam valve
specifications:
| Product Name: | 2" , Acuator globe valve C-Top,Regulation Valve, Steam Valve |
| Seal Material: | EPDM |
| Working Pressure: | 8 Bar, 10Bar(option). |
| Max. Working Temperature: | 120 degree ,180Degree(Option) |
| Availably size: | DN10-DN100,1/2"-3" |
| Availably connection: | Thread,Weld,Clamp,BSP/BSP/NPT |
| Operate: | Pneumatic , Control Head |
| Certificate: | FDA,CE,ISO |
Features:
1. Position sensors can be visual,open (green)off(red)
2. Jog buttons
3. Built-in solenoid valve
4. The basic version
5. AS-I bus version
Operation Options for Globe Valve
1. Manual:Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel
2. Pnuematice:Plastic and stainless steel actuators
3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor
Applications:
Globe valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.
Operationg Principles
1. Globe valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.
2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.
Tag: Globe valves, Donjoy Sanitary valves, Steam valves
