| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | C-TOP-11 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | US $600 - 1,000 / Piece |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

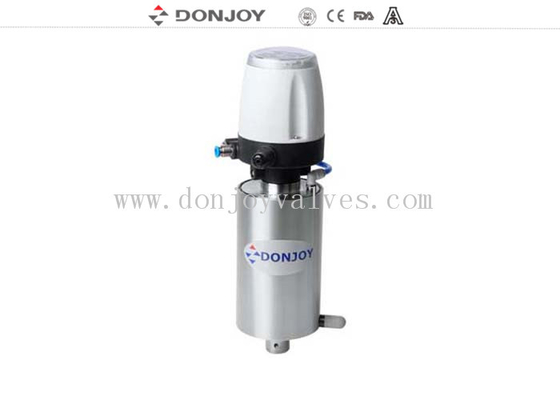

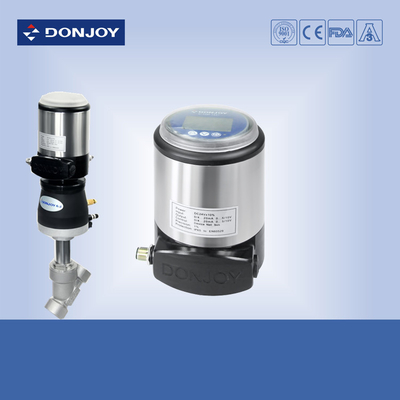

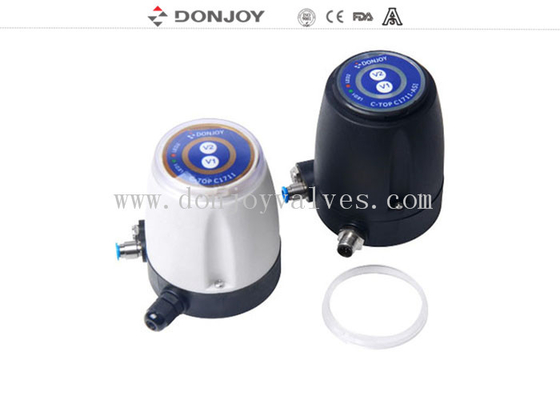

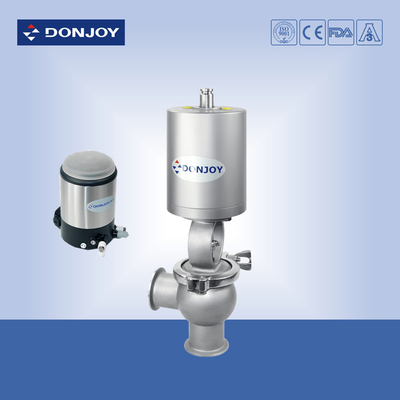

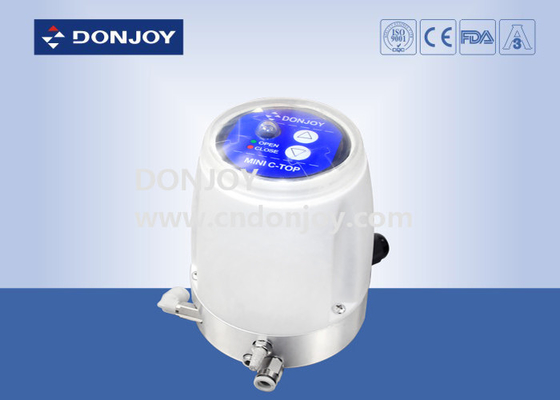

DC 24V Intelligent valve Positioner , angle seat valve 1.5 bar - 7 bar 31 C - TOP units
SPECIFICATION
|
Product Name |
Intelligent valve positioner |
|
Version |
Displacement regulating version & Mechanical regulating version |
|
Optional |
Gasket: NBR / MVQ / FPM |
|
Medium |
Lubricated compressed air, insert gases |
|
Max. Working temperature |
70℃ |
|
Working pressure |
1.5 bar - 7 bar (22PSI to 102PSI) |
|
Connector |
G1/8" |
|
Level of protection |
IP67 |
|
Stroke |
Min. 3mm; Max. 70mm |
|
Max. C - TOP units |
31 C - TOP units |
|
Connecting lable |
2m |
|
AS-I BUS |
max. length: 1m |
Applications
C - TOP is pneumatic controller which is designed to ensure optimum control valve.
It is compatible with most PLC automatic system. In the industry of food, beverage, pharmacy,it could be installed to all kinds of pneumatic valves such as mixture proof valve, butterfly valve, vall valve, diaphragm valve, reversing valve and globe valve etc.
Design and features
Connecting sensors with solenoid valve ( actuator ) easily, fastly and economically by AS - I BUS mastering.
Since cables are largely decreased, installation and start up become more convenient.
Besides, start time is shortened, and some hidden troubles in the installation can be avoided.
Parts are same as standard C - TOP. The only changed part is the built - in card,. AS - I insulation replacement connector and the cable connector itself.
C - TOP Valve control unit - - 2014
Displacement regulating version
| Model | Sensor | Solenoid valve | Power | Connection | Remarks |
| MIN-S-V1 | 1 | 1 | DC. 24V | Cable connection | Single acting |
| MIN-S-V2 | 1 | 2 | DC. 24V | Cable connection | Double acting |
| MIN-S-V1-AS | 1 | 1 | DC. 24V | AS-I BUS | Single acting |
| MIN-S-V2-AS | 1 | 2 | DC. 24V | AS-I BUS | Double acting |
Mechanical regulating version
| Model | Sensor | Solenoid valve | Power | Connection | Remarks |
| MIN-S-V1-M | 1 | 1 | DC. 24V | Cable connection | Single acting |
| MIN-S-V1-M | 2 | 1 | DC. 24V | Cable connection | Single acting |
| MIN-S-V2-M | 2 | 2 | DC. 24V | Cable connection | Double acting |
| MIN-S-V1-AS-M | 1 | 1 | DC. 24V | AS-I BUS | Single acting |
| MIN-S-V1-AS-M | 2 | 1 | DC. 24V | AS-I BUS | Single acting |
| MIN-S-V2-AS-M | 2 | 2 | DC. 24V | AS-I BUS | Double acting |
Installation
