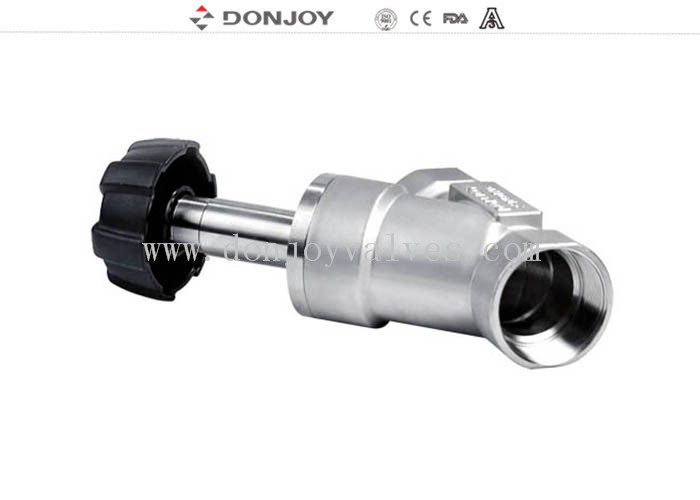

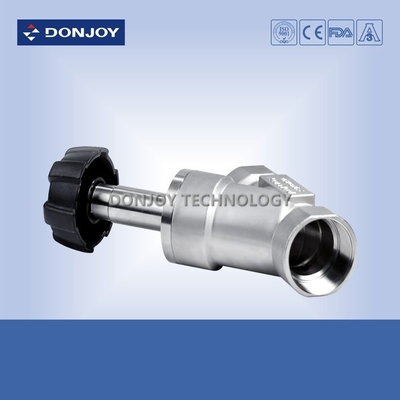

SS316L 2" Plastic Handle Angle Seat Valve , Steam Angle Valve With Clamp Connection
specifications:
| Product Name: | SS316L /SS304 2" Plastic Handle Angle Seat Valve,Steam Valve with clamp connection |
| Valve Body Material: | CF8M/316L |
| Seal Material: | EPDM |
| Working Pressure: | 8 Bar, 10Bar(option). |
| Max. Working Temperature: | 120 degree ,180Degree(Option) |
| Availably size: | DN10-DN100,1/2"-4" |
| Availably connection: | Thread,Weld,Clamp,BSP/BSP/NPT |
| Operate: | Manual |
| Certificate: | FDA,CE,ISO |
More products :
http://www.maoyt.com/test/donjoyvalves.com/sale-7643399-chocolate-and-flow-control-tul-30-bare-shaft-lobe-rotary-pump-with-flush-seal.html
Description
A new generation of high purity design of the angle seat valve
1. No dead angle, no retention to meet the requirements of all kinds of health.
2. Advantages: The spool without bolt, without considering the risk of damaging other equipment because of bolt dropping;
3. The valve have no dead angle, no need to consider the resulting corner because of the complex structure.
4. Temperature: maximum temperature up to 200 (depending on the seal type)
5. Seal: elastic shaft seal design, embedded spool design.
Operation Options for Seat Valve
1. Manual: Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel
2. Pnuematice: Plastic and stainless steel actuators
3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor
Applications:
Angle seat valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.
Certificate
Donjoy manufacture products certified by 3A,CE,FDA and so on, according to GMP, EHEDG standard. Production strictly enforce ISO9001-2008 management system.
Target of competition
Donjoy ‘s vision is to be become leading supplier in fluid control, high purity sanitary valve &pump fields, with advanced technology and excellent quality.
Tag : Shut off valve, Angle seat valve, Sanitary Donjoy Valve
