| ब्रांड नाम: | Donjoy |
| मॉडल संख्या: | NO. |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | बातचीत योग्य |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

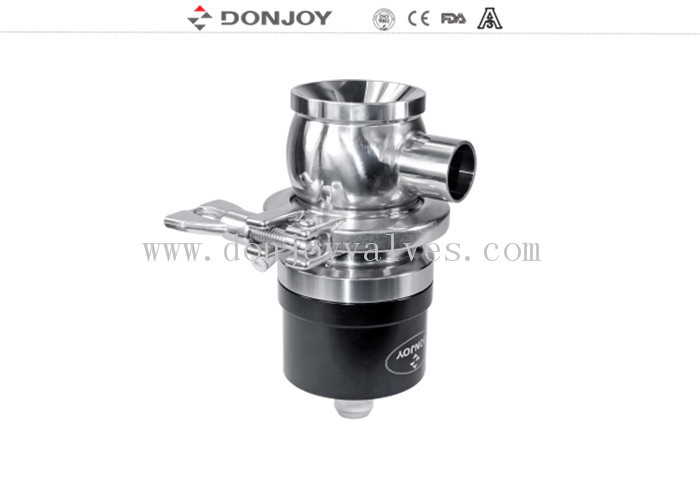

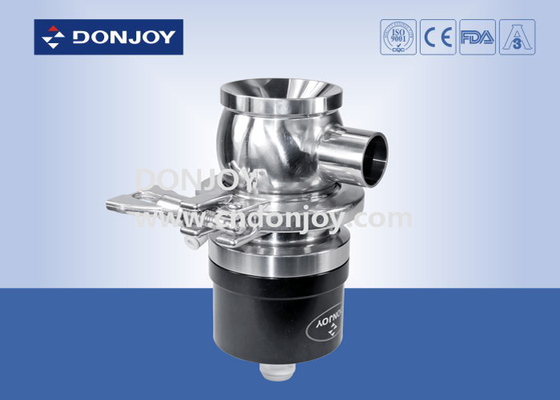

316L DN50 Tank Bottom ss diaphragm valve EPDM Gasket Welding Ends
Applications
Mainly used in pharmaceutical, biotech, health care, cosmetic and food industries.
In the pharmaceutical industry, the valve can be used as process control valve, dosing valve, sampling valve and aseptic drain valve etc.
n the food industry, this valve is often used as guide device, such as sampling valve, dosing valve(For example adding CO2/Nitrogen to beer, add seasoning to drink)
Specifications
| SS 316L DN50 Pneumatic Tank Bottom Diaphragm Valve with |
Valve Body Material: | SS316L/1.4404 |
| Two pieces PTFE+EPDM(standard) |
MaxWorking Pressure: | 6 Bar |
Max.WorkingTemperature: | -10 degree C to 120 degree C(depending on diaphragm) |
Availably size: | 3/4''-2.5'', DN20-DN65 |
Availably connection: | Clamp/welding/special connection |
Availably standard: | 3A/BPE/DIN/ISO/IDF |
Operated: | Pneumatic and Manual interchangeable |
Air pressure of actuator: | 5 bar - 6 bar |
Feature: | Manual or pneumatic operation is interchangable. |
Control: | Smart valve positioner / C-TOP control / position sensor |
Certificate: | 3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
Product description
Radial diaphragm valve are mainly manual and pneumatic operations, inside body finished
Ra<0.5um, in order to meet the requirements fo biopharmaceutical industry.
Structure features
New diaphragm design.
Maintenance is simple, safe and easy to operate.
Self-emptying function.
Dead angle minimization.
Had excellent KV value.
CIP/SIP sterilization and cleaning.
Various configuration of Diaphragm valve
1. Plastic actuator
2. Stainless steel handle
Certifications
3A CERTIFICATION
CE CERTIFICATION
FDA 177.2600 CERTIFICATION for gasket
Application scope
In the industries of Dairy,food, beverage, pharmacy, cosmetic etc.
Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
Product drawing
