| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | IL-TOP |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | US $400 - 777 / Piece |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

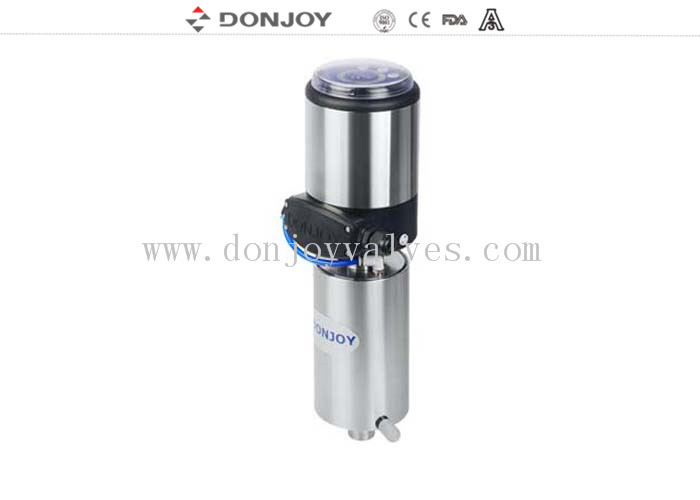

Stainless steel intelligent electric diaphragm valve with an intelligent valve positioner/controller
Specification
|
|
Stainless steel intelligent electric diaphragm valve with an intelligent valve positioner/controller |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Pneumatic actuator | |||
|
Size | Range of application | |
| Butterfly valve | Ball valve | ||
| 70 | DN10-DN50/0.5"-2" | DN10-DN25/0.5"-1" | |
| 85 | DN10-DN100/1"-4" | DN10-DN40/0.5"-1.5" | |
| 114 | DN100-DN125/4"-5" | DN50-DN65/2"-2.5" | |
| 133 | DN150-DN200/6"-8" | DN80-DN100/3"-4" | |
| 168 | DN250-DN300/ 10"-12" | DN100/4" | |
Feature
BUS communication: MODE BUS RS485
Modulating input: 0 / 4 - 20mA
Switching input: DC24V (positive and negative pole relay on and off)
Power supply: DC24V
Packaging
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.
Structure
With electric control unit.
Speed
20s - 80s (optional)
Operation
Electric power
Optional
Infrared sensor
Direction of motion
NO / NC (normal open / normal close)
Display
