| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO. DIN-VZH130A1 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | $22.73-134.85/PC |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

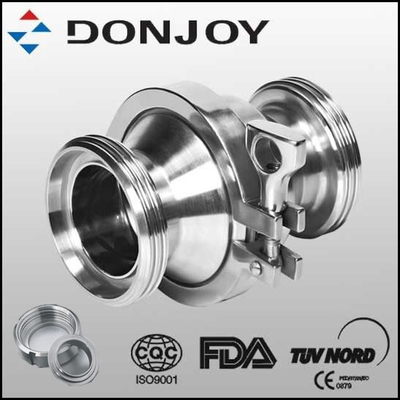

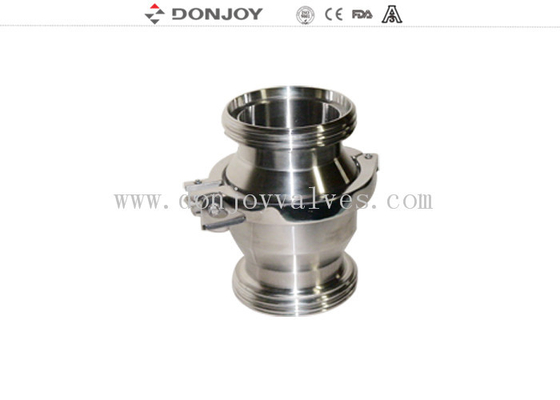

Middle clamp type check valve with thread connection on 2 ends for drink industry
Quick Detail
Hydraulic Check Valves
Easy disassemble
Small-size construction
DIN11851 connection (standard)
Specification
| Product Name: | Middle clamp type check valve with thread connection on 2 ends for drink industry |
| Valve Body Material: | SS304 / SS316L |
| Seal Material: | EPDM |
| Max. Working Pressure: | 10 Bar |
| Opening pressure: | 0.1 - 0.3bar |
| Max. temperature: | 120 ℃ |
| Available size: | DN20 - DN100 |
| Available connection: | Thread,Weld,Clamp |
| Available standard: | DIN,SMS |
| Certificate: | FDA,CE, ISO etc. |
| Middle connection: | Clamp |
| End connection: | Thread |
Description
Option of Check Valve
1. Connection: Clamp, Weld, Thread
2. SEAL: NBR, FPM, PTEF all according to FDA177.2600
3. Standard: DIN,SMS, RJT, IDF, ISO
4. Middle clamp: optional
5. Thread type: optional
Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.
Operating Principle
The valve opens when the pressure of the fluid exceeds the pressure to spring,
When the two pressures are equalised, the valve closes, A stronger counter –
pressure also makes the valve close.
Details
Q1: Transportation?
A1: By air / sea / express / land etc.
Q2: Production base?
A2: Wenzhou Binhai production base & Wenzhou Airport production base.
Q3: Main production?
A3: Sanitary valve, pump and pipe fittings.
Specification in DIN thread connection
