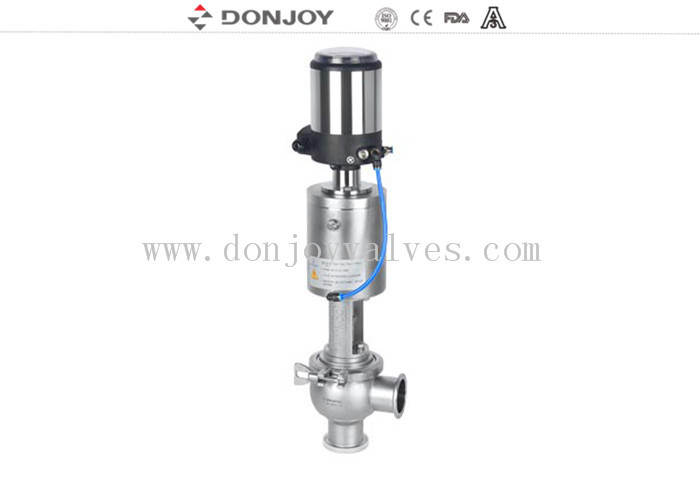

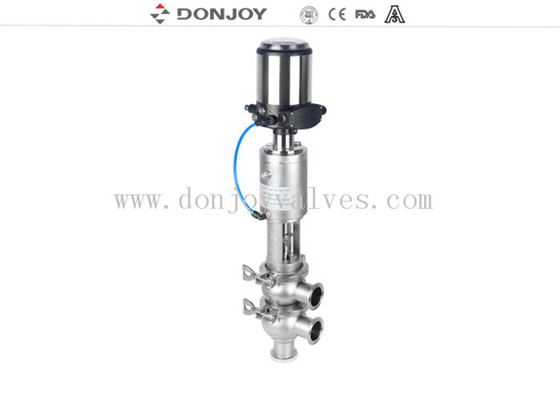

Hygienic Stainless Steel Pneumatic 2 Way Divert Seat Valve

Hygienic Stainless Steel Pneumatic Automatic Operated Divert Seat Valve with Sensing Control Unit

Advantage:

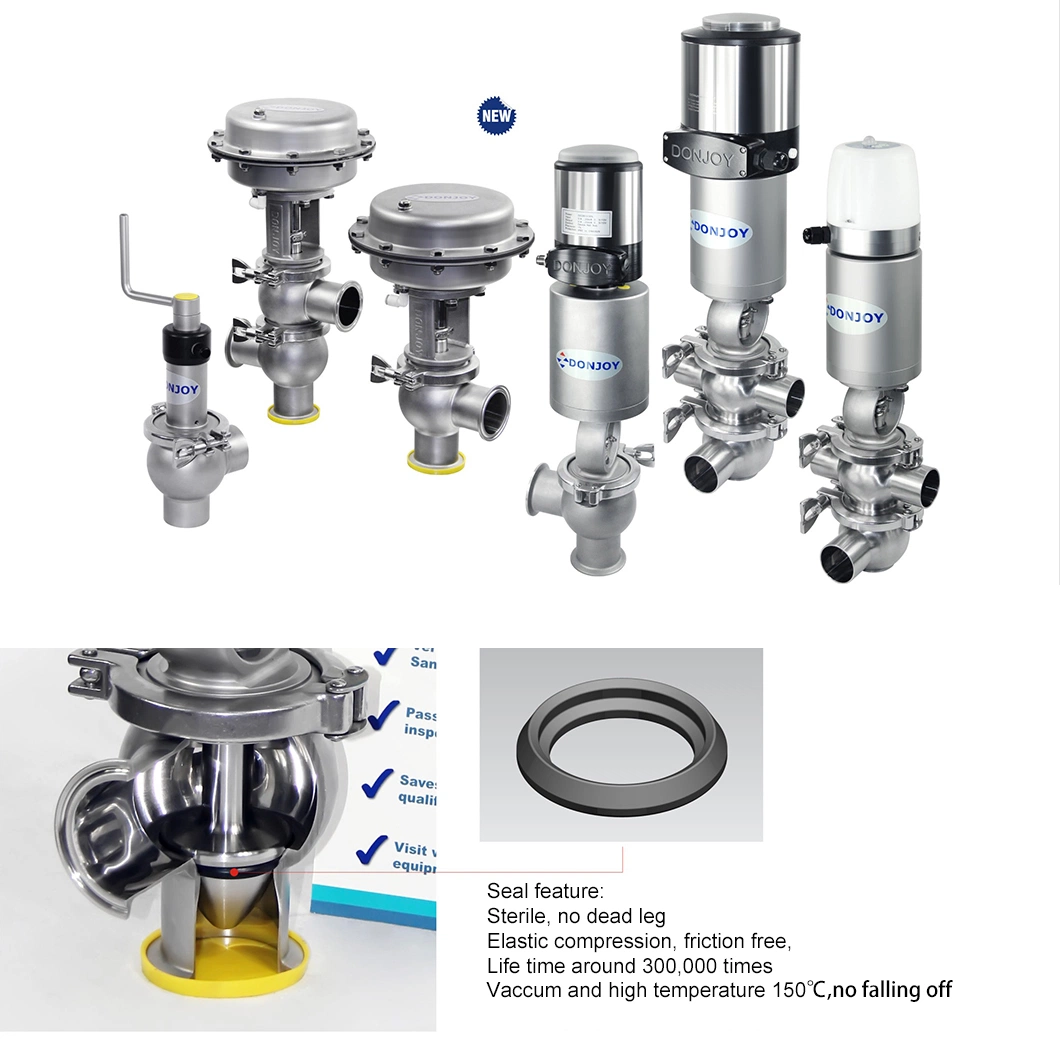

Sanitary Divert Seat Valves boast of a unique seal design with no dead angle. They are wildly used in food-processing, beverage, pharmaceutical and fine chemicals industries, etc.

1.Compact and robust design
2.A flexible 360° rotation
3.Easy to assemble/disassemble.
4.Manual handwheel, pneumatic actuator are interchangeable.
5.Normally closed (NC) actuator as the default, the NC and NO function are interchangeable by rotating 180° of the cylinder.

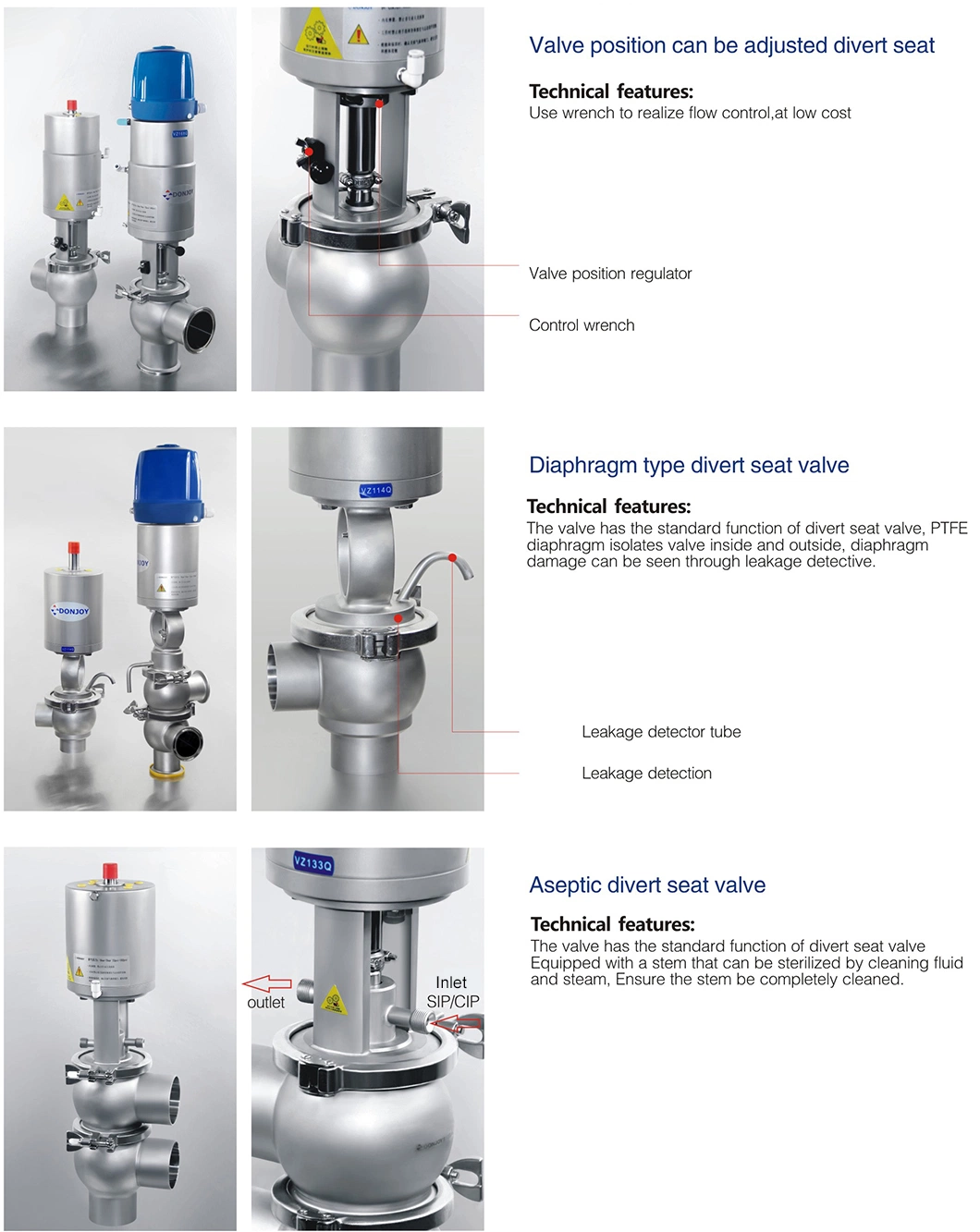

6.Boasts of intelligent indication and control: Proximity Switches (position sensor), Stroke Limiter, C-TOP control, IL-TOP control (Positioner) and Diaphragm Actuator
7.It's hygienic designed following a 3A standard.
8.Boasts of the intelligent indication and control: Proximity Switches (position sensor), Stroke Limiter, C-TOP control and IL-TOP control (Positioner)

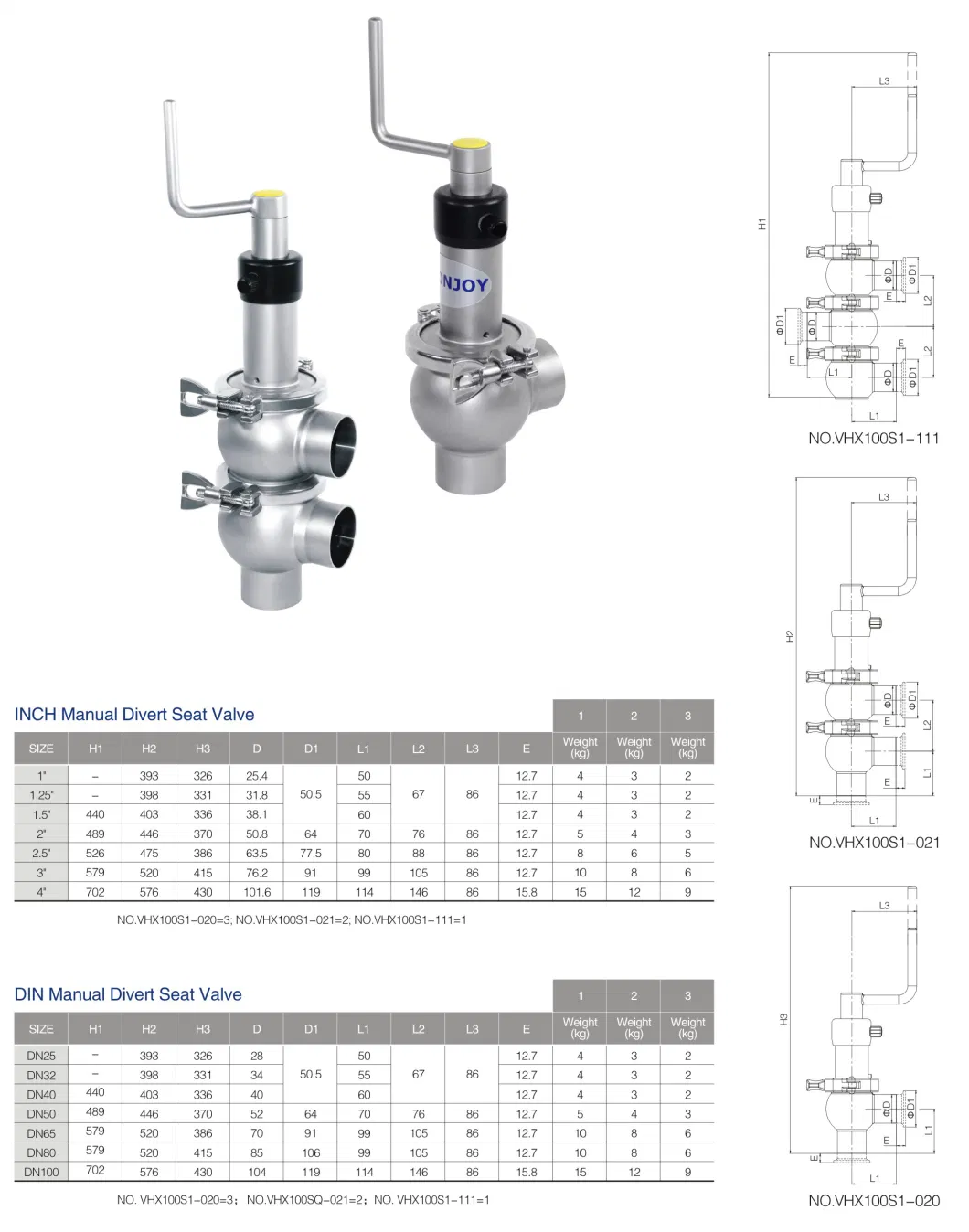

Technical specification:

Hygienic Stainless Steel Pneumatic Automatic Operated Divert Seat Valve with Sensing Control Unit

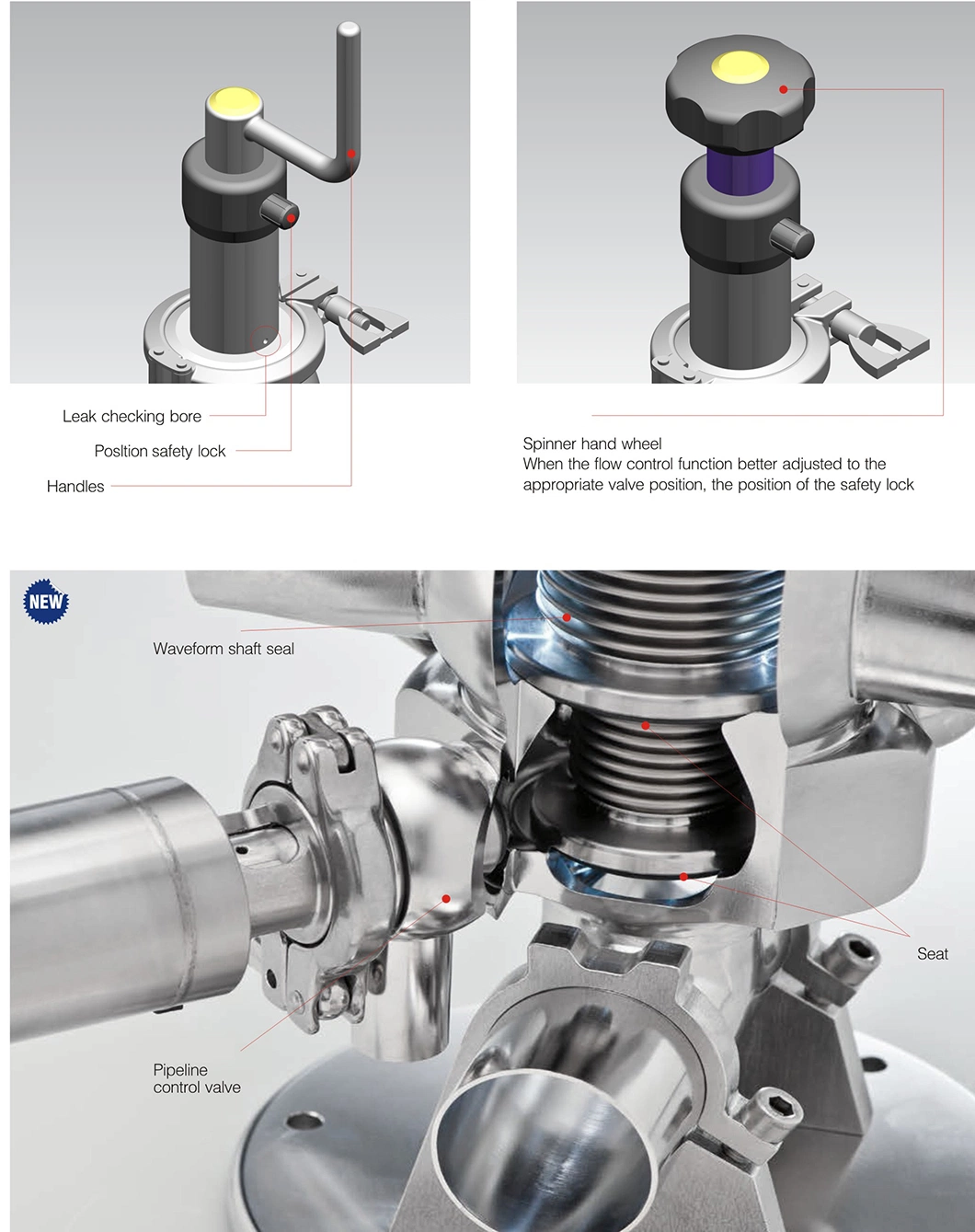

Design Features

1.Unique design, sterile, no dead angle
2.Compact and robust design, 360° adjustable body.
3.Normally closed (NC) as the default, the NC and NO function are interchangeable by rotating 180° of the cylinder.
4.Easy assembly/disassembly by loosening clamp in middle of the valve body
5.Hygienic design according to 3A standard
6.Manual handwheel, pneumatic actuator are interchangeable.

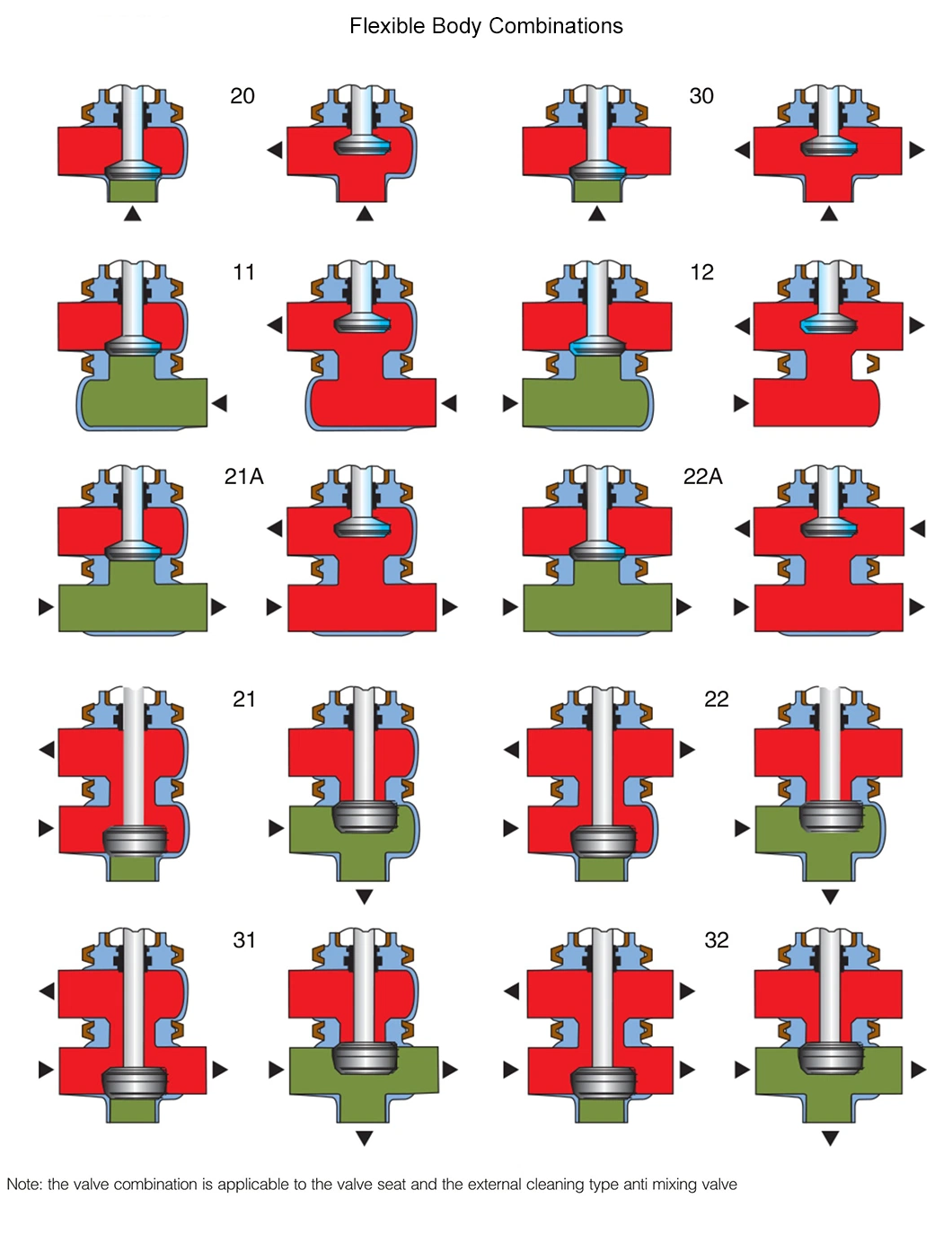

7.A wide selection of different body combinations.
8.100% hydraulic tested / 100% inspected

Operations
Handles:Stainless steel handwheel,Fine-tuning handwheel
Actuators:Stainless steel actuator,

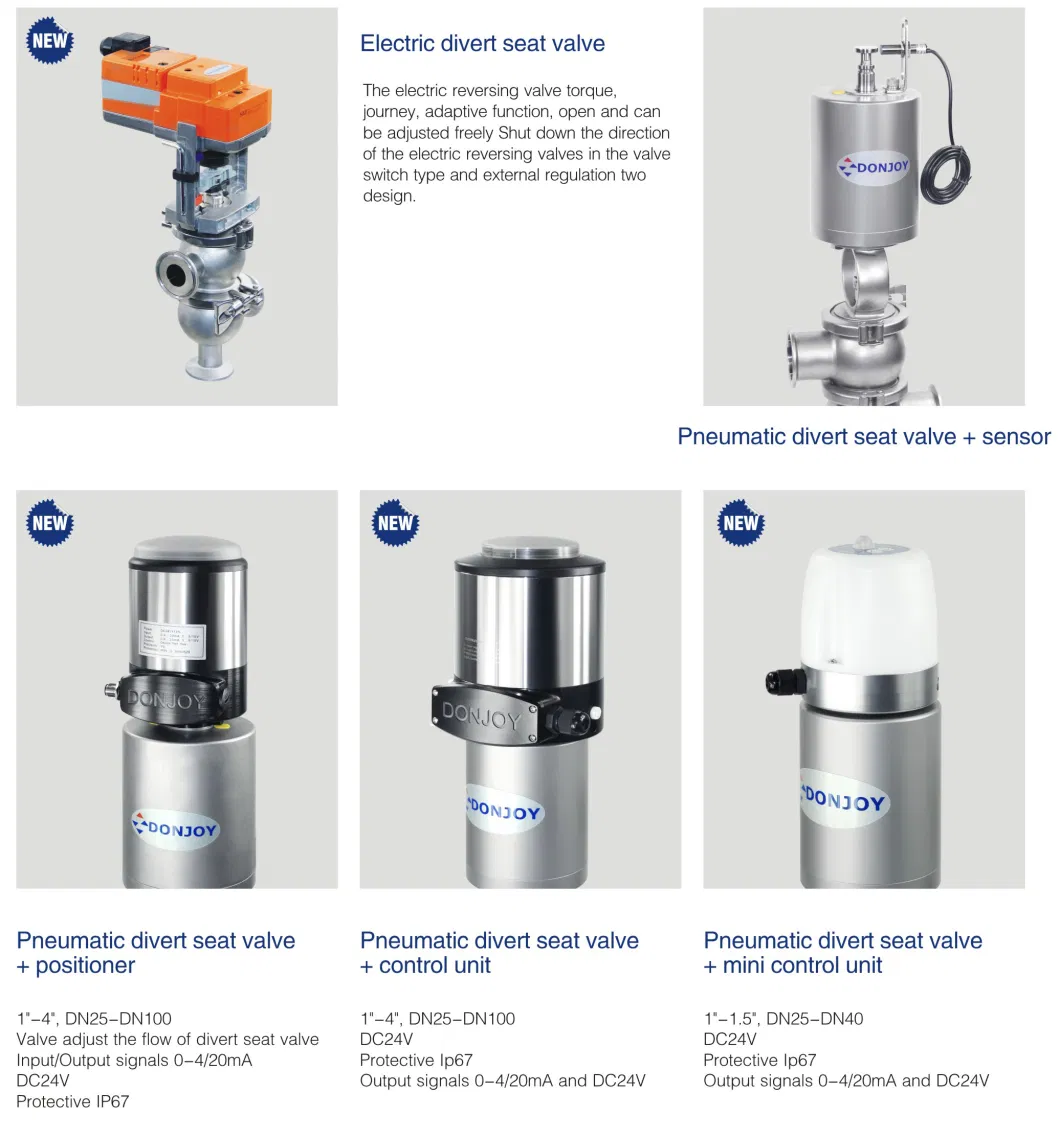

Units for intelligent control and indication:Proximity Switches (position sensor)
Stroke Limiter
C-top control
IL-top control (Positioner)
Diaphragm Actuator

Reference: SV-5DSMC
Sizes available: 1"-4" (DN25-DN100)
End connection: butt-welded, tri-clamp
Body material: AISI 304, or AISI 316L
Seat material: EPDM, FDA177.2600
Max. working pressure: 145psi (10bar)
Temperature range: 14°F to 248°F (-10ºC to 120ºC, EPDM)
Operation: stainless steel handwheel, fine-tuning handwheel
Internal treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm)

Connection:
Clamped, welded and threaded,flanged etc.

Packaging Details:
Bubble pack for each valve.
Outside packing is by carton or plywood case.
