| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO.MINI-VHX100Q1 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | US $200 - 1,200 / Piece |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

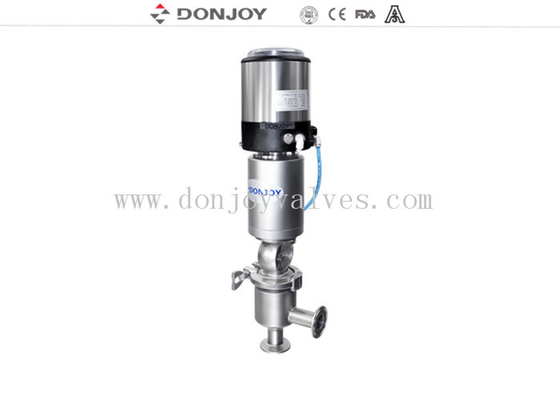

3/8" - 3/4" 316L mini - type sanitary reversing seat valve with no dead conner
Tag
mini - type sanitary reversing seat valve
divert seat valve
seat valve
Specification
|
Item name |
mini - type sanitary reversing seat valve with no dead conner |
|
Material of valve body |
SS316L |
|
Material of seal ring |
EPDM |
|
Max. working pressure |
10 bar |
|
Max. working temperature |
130°C |
|
Size |
3/8" - 3/4"
|
|
Connection |
Threaded, welded, clamped |
|
Standard |
DIN, SMS, RJT, 3A |
|
Operating mode |
Pneumatic |
|
Certificate |
FDA, CE, ISO |
|
Body seat |
single seat |
|
control unit |
can be installed with C-TOP |
|
work times |
1.5 millions times |
|
Advantage |
Could meet high frequency on/off |
|
Design |
Seal - in - one piece design |
Application
The valve is particularly suitable for filling machine, it could replace traditional rotary valve.
Design features
Integrated seal design
It could meet the function of high - prequency on/off.
No dead conner design and meet the requirements of 3A-85-00.
Seal ring meets the certification of FDA 177.2600.
Mini - type reversing valve.
Feature
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining
Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor
Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.
Product drawings
Tag : Donjoy over change valve. Donjoy Reversing valve, Sanitary valve
