| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO.VHS100S1-020 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | US $150 - 1,200 / Piece |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

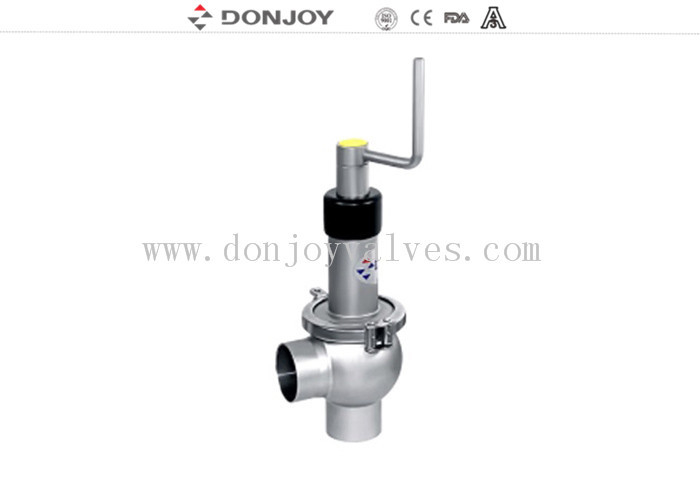

Manual regulating 304 / 316L reversing seat valve with rotary handle 1'' - 6"
Tag
Reversing seat valve with rotary handle
Manual divert seat valve
seat valve
Specification
|
Product Name: |
Manual regulating reversing seat valve with rotary handle |
|
Valve Body Material: |
SS304 316L |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
Max Working Pressure: |
10 bar |
|
Max.Working Temperature: |
130°C |
|
Available size: |
DN25 - DN150 or 1" - 6" |
|
Available connection: |
Clamp/welding/thread/special connection |
|
Available standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
Manual |
|
Structure |
With rotary handle |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Body seat |
Single seat |
|
Body connection |
Clamp connection |
|
Feature on handle: |
With leak detecting hole and position safe lock |
|
Manual model: |
VHX100S1-111 / VHX100S1-021 / VHX100S1-020 |
Feature
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining
Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor
Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.
Product drawings
Tag : Manual valve, Regulating valve, L Type valve
