| ब्रांड नाम: | DONJOY |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | US $200 - 1,200 / Piece |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

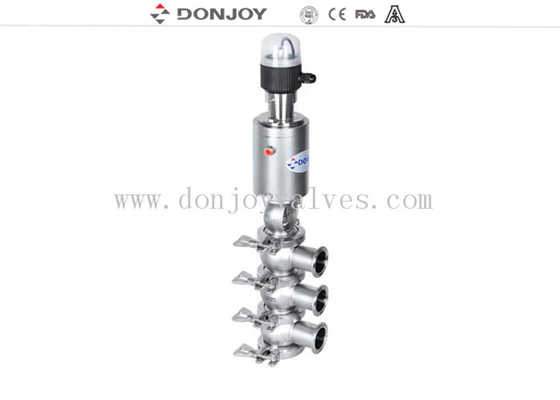

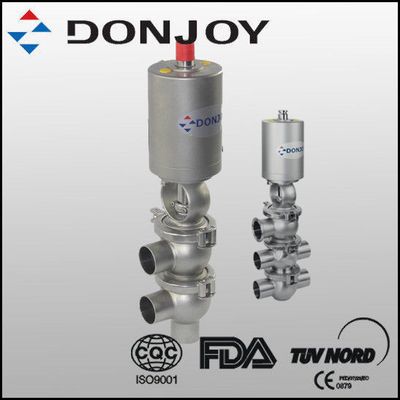

1" - 4" 304 316 pneumatic reversing seat valve with three seats and positioner IL-TOP
Quick detail
Pneumatic reversing seat valve,
divert seat valve,
regulating reversing valve
Specification
|
Product |
1" - 4" 304 316 pneumatic diaphragm type reversing seat valve with double seats |
|
Valve Body Material: |
SS304 316L |
|
Seal Material: |
EPDM (standard) / VITION / HNBR , compy with FDA177.2600 |
|
Working Pressure: |
10bar, 20bar(optional) |
|
Max.Working Temperature: |
130 °C |
|
Available size: |
DN25 - DN100 or 1" - 4" |
|
Available connection: |
Clamp / welding / thread /nut / flange |
|
Available standard: |
3A / DIN / SMS / RJT / ISO / IDF /BS4825 |
|
Operated: |
Pneumatic |
|
Structure |
Pneumatic diaphragm type |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic etc |
|
Feature: |
Can resist water hammer |
|
Position of positioner: |
Be installed on sideway. |
Feature
The material connected with media: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining
Options
Gasket: HNBR / VITION
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor
Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc
Product advantage
Positioner can be installed on sideway
Can resist water hammer
Can bear higher presure
Valve body:
Tag : Over change valve, Donjoy seat valve, Donjoy Shut off valve
